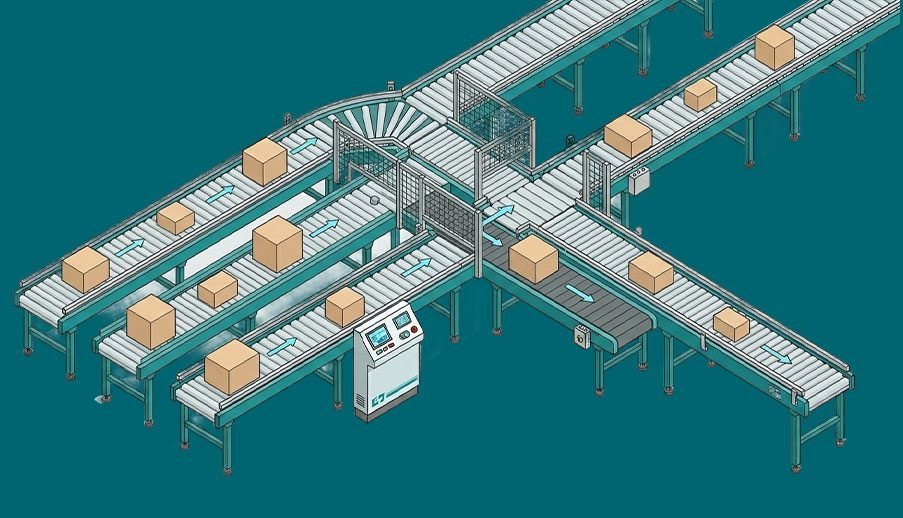

Cross Transfer Conveyor Systems with 90 Degree Pop Up Transfer
Smart Product Routing. Seamless Direction Changes. Efficient Automated Transfers.
Advanced Cross Transfer Conveyor System
Solutions for Intelligent Material Flow
Cross Transfer Conveyor Systems with 90 Degree Pop Up Transfer are designed to enable smooth and efficient product transfer between perpendicular conveyor lines. These systems are widely used in automated production lines, warehouses, packaging facilities, and sorting applications where products need to be diverted, merged, or transferred at right angles without manual handling.
The Cross Transfer Conveyor System uses multiple conveyors positioned perpendicular to each other, allowing products to move seamlessly between different conveyor paths while maintaining workflow continuity. Convello’s cross transfer conveyors are engineered for precise movement, synchronized operation, and space-efficient layouts, making them ideal for modern industrial automation.
We are ISO certified, reflecting our commitment to quality, safety, and manufacturing excellence.
Key Features
90 Degree Pop Up Transfer Mechanism
Uses multiple conveyors positioned perpendicular to each other for smooth and controlled right-angle product transfer through a 90 degree pop up transfer conveyor mechanism.
Customizable Transfer Configurations
This material transfer conveyor can be customized for different product sizes, transfer directions, and operational requirements.
Integrated Elevating Mechanism
The lifting system accommodates different conveyor heights, enabling smooth transfer between adjacent equipment with a reliable pop-up transfer conveyor mechanism.The lifting system accommodates different conveyor heights for smooth transfer between adjacent equipment.
Single Motor Synchronized Operation
The product routing conveyor uses a single motor-driven system to ensure synchronized transfer and precise elevation movement for efficient product handling.
Fast & Accurate Product Diversion
This right angle transfer conveyor enables high-speed product redirection, merging, and sorting without interrupting workflow.
Compact & Space-Saving Design
Ideal for facilities with limited floor space, this material transfer conveyor design maintains efficient material flow while optimizing available space.
Automation & Sensor Integration
Compatible with PLC systems, sensors, and automated control systems for smart pallet transfer conveyor operations and efficient conveyor management.
FAQs About Cross Transfer Conveyor Systems
What is Cross Transfer Conveyor System and how does it work?
A cross transfer conveyor moves a product at right angles between parallel or perpendicular conveyor lines. Pop-up chains, belts or rollers lift and transfer the load into the new direction.
What products or materials can a cross transfer conveyor system handle?
It can handle cartons, totes, trays, fixtures, pallets or products with a stable base, depending on the selected transfer mechanism and support spacing.
Where is a cross transfer conveyor system commonly used?
Cross transfers are used in manufacturing, assembly, packaging, warehouses and automated routing systems where products must change lanes or direction.
How does a 90-degree pop-up transfer conveyor work?
The transfer module rises between the main conveyor rollers, lifts the load and moves it sideways. It then lowers so the next product can continue on the main line.
Should a cross transfer use chains, belts or rollers?
The choice depends on the product base, load, transfer distance, orientation, speed and surrounding conveyor. Pallets often require different support than cartons or totes.
Can a cross transfer conveyor system integrate with an existing conveyor or automation line?
Yes. Cross transfers can work with roller, pallet, assembly and conveyor-routing systems controlled by sensors and PLC logic.
What controls and safety options can be added to a cross transfer conveyor system?
Options include guarded lift mechanisms, product sensors, interlocked access, emergency stops, jam detection and controlled sequencing.
What information is needed to plan the installation of a cross transfer conveyor system?
Share product footprint and weight, incoming and outgoing direction, conveyor top height, transfer frequency, orientation requirements and layout.
What maintenance does a cross transfer conveyor system require?
Inspect lift mechanisms, chains or belts, actuators, guides, sensors, bearings, fasteners and alignment with both conveyor lines.
What details should I share for a a cross transfer conveyor system quotation?
Provide product or pallet data, transfer angle, line speeds, cycle rate, lift height, orientation and control sequence.
Why Your Facility Needs Cross Transfer Conveyors
Traditional conveyor layouts can limit flexibility and reduce operational efficiency when directional product movement is required. A cross transfer conveyor with 90 degree pop up transfer provides intelligent automation for modern material handling, enabling smooth and efficient product movement between conveyor lines.
Efficient 90° Product Transfer
Allows smooth movement between perpendicular conveyor lines using a right angle product transfer conveyor for efficient directional material handling.
Improved Material Flow Control
Enhances sorting, merging, and product routing efficiency across automated conveyor systems.
Reduced Manual Intervention
Minimizes labor dependency and handling errors by automating product transfer between conveyor lines.
Optimized Floor Space Utilization
A custom cross transfer conveyor for production lines supports compact and efficient facility layouts while maximizing available floor space.
Benefits of Our Cross Transfer Conveyor Systems
Higher Productivity
Accurate Product Positioning
Reduced Downtime
Flexible System Integration
Improved Operational Safety
Scalable & Customizable
Industries We Serve
Manufacturing & Automation
Packaging
E-commerce & Fulfillment
Warehousing & Distribution
Food & Beverage
FMCG & Consumer Goods
Technical Specifications Customizable According to Needs
| Transfer Direction | 90 Degree Right Angle Transfer |
| Transfer Mechanism | Pop Up Belt / Chain / Roller System |
| Drive Type | Single Motor Synchronized Drive |
| Structure Material | Mild Steel / Stainless Steel |
| Load Capacity | Based on application requirements |
| Control System | PLC & Sensor Integration Compatible |
| Speed Control | Fixed or Variable (VFD enabled) |
| Optional Features | Photo sensors, automation modules, product positioning guides |
Upgrade Your Material Handling System Today
A well-designed cross transfer conveyor system improves operational efficiency, optimizes space utilization, and enables seamless automated product movement across your facility. Get a customized 90 Degree Pop Up Transfer solution designed specifically for your workflow and industry requirements.
Get the Cross Transfer Conveyor Solution for Your Facility
Share your requirements and a tailored quote for your production needs.
